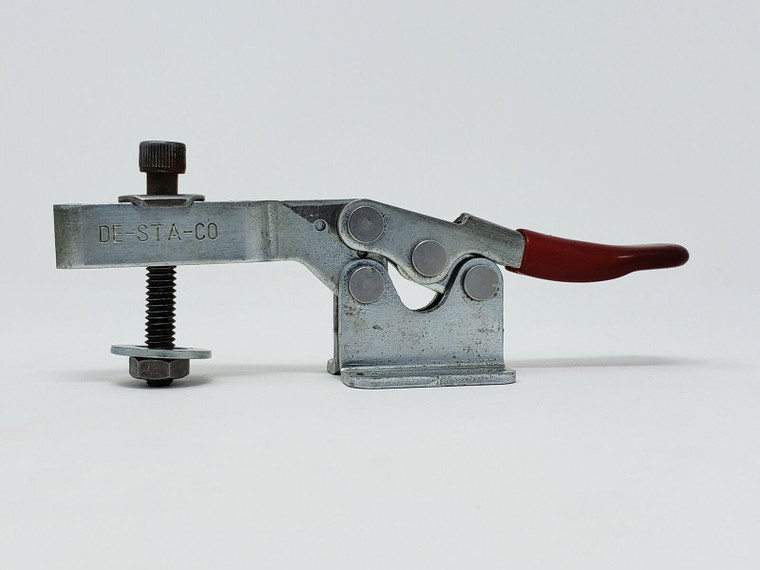

Destaco Dover 215-U Horizontal Hold-Down Toggle Action Clamps

Destaco Dover 215-U Horizontal Hold-Down Toggle Action Clamps

Destaco Clamps
SKU:
IF_B1F0F0EF-1
$9.95
(No reviews yet)
Weight:
0.38 LBS
Width:
4.00 (in)
Height:
8.00 (in)
Depth:
1.00 (in)
Current Stock:
1
Adding to cart… The item has been added
Description

215-U Horizontal Hold-Down Action Clamps

Steel Workholding clamps
Used, good condition

Minimum overhead clearance is required for this low profile clamp

  • Clamp supplied with neoprene spindle
  • Low profile
Maxmum Holding Capacity (N) 890
Maximum Holding Capacity (lbsf) 200
Clamp Arm Length (mm) 57.4
Clamp Arm Length (in) 2.260
Height Under Clamp Arm (mm) 25.4
Height Under Clamp Arm (in) 1.000
Clamp Bar Opening (+10°) (degrees) 87
Handle Opening (+10°) 78
Available Yes
Standard Material Steel
Toggle Lock Plus No
Accomodates Workpiece Variation No
Base Mounting Style Flange
Clamp Arm Style U-Bar
Handle Horizonal
Service Environment Normal
Application - Welding Fair/Medium
Application - Assembly Excellent/High
Application - Checking Fixtures Excellent/High
Application - Machining Poor/Low
Application - Wood-Working Excellent/High
Application - Closures Excellent/High
Application - Food Processing Fair/Medium
Duty Cycle 2
Product Type Standard
Weight (kg) 0.15
Weight (lb) 0.33
Product Series Description Horizontal Clamp
